MU-1000 Meter Bridge

[Peter Batah]

Hello all,

I couldn't find this info in the users manual. Unless, I completely missed it.

Should the meter bridge be fastened to the DM-4800 in any specific way. Mine is just sitting there kind of held by two protruding rods.



[Marvel]

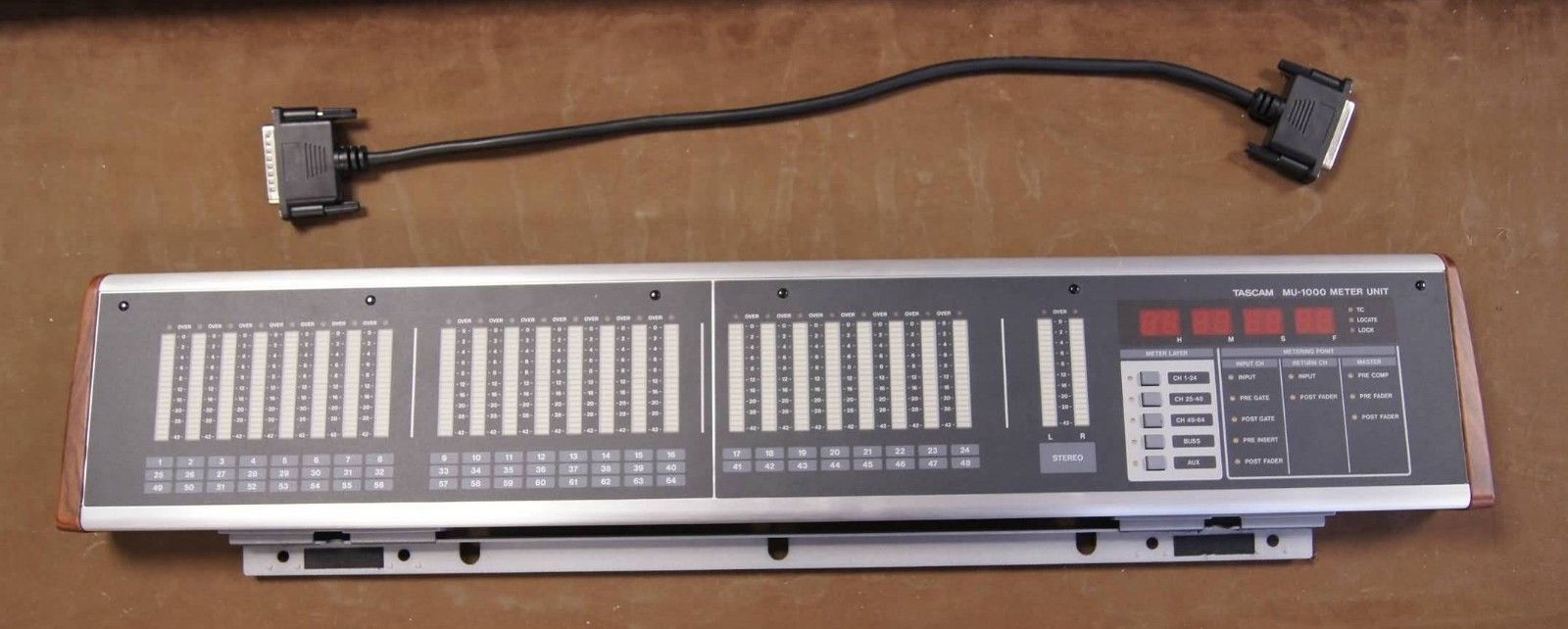

not sure what you mean by that. See the pic, do you see the metal strip at the bottom? It should be connected to the DM with 2 or 3 screws. Not at the desk atm, so can't check exactly.



[Peter Batah]

@Marvel Thanks for your input. Yes, I meant the bottom metal strip.



[J L Bowie]

There are two screws on either side of each metal post, but on the back of the DM4800, that fasten the meter bridge to the mixer. They align perfectly with the holes provided on the bridge support. Pop them out, set the bridge in place, then screw them back in. Voila, Bob's your uncle...



[Peter Batah]

@J L Bowie I see. So, what you are saying (if I understand you correctly) is that the screws are already seated at the back of the DM. All I have to do is remove them and then use them to fasten the meter bridge to the DM. Thank you. Peter



[J L Bowie]

You got it, Peter.
